SPECIFICATIONS

Brand Name: zuked

Certification: CE

Hign-concerned Chemical: None

Origin: Mainland China

Output Frequency: 0-400HZ

Output Type: triple

Output frequency: 0-400HZ

RS485: NO

Type: DC/AC Inverters

brake module: NO

control method: V/F, vector

is_customized: None

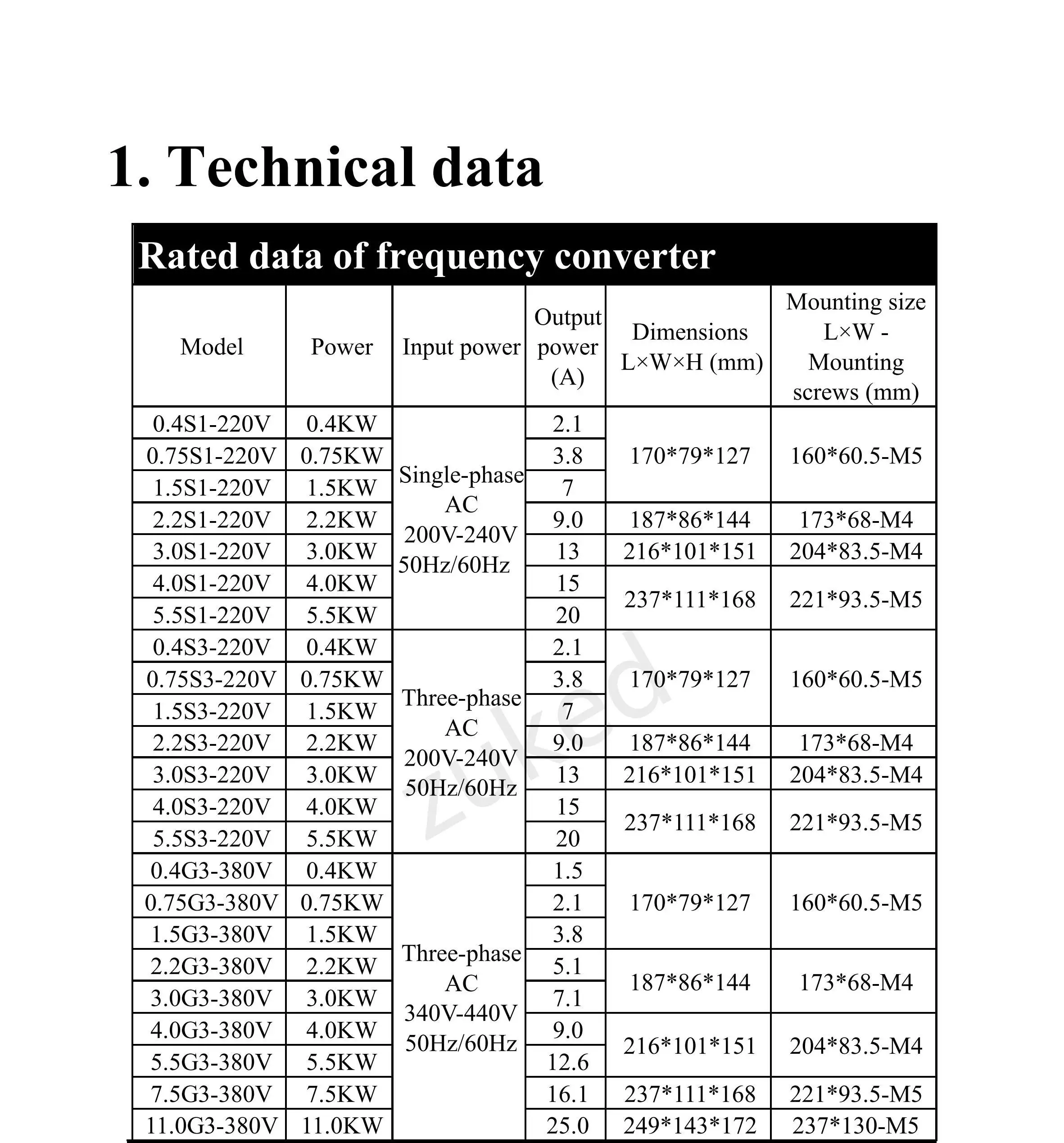

power: 0.75/1.5/2.2KW 3KW 4KW 5.5KW /7.5kw/22KW



320 series 380v：

input：AC 3PH 340V- 440V

            50Hz-60Hz

output：AC 3PH 0-440V 400HZ





320 series 220v：

input：AC 1PH 220V- 240V

            50Hz-60Hz

output：AC 3PH 0-240V 400HZ





Description:

This Variable Frequency Drive is made of high quality shell material, heat resistant and flame retardant.

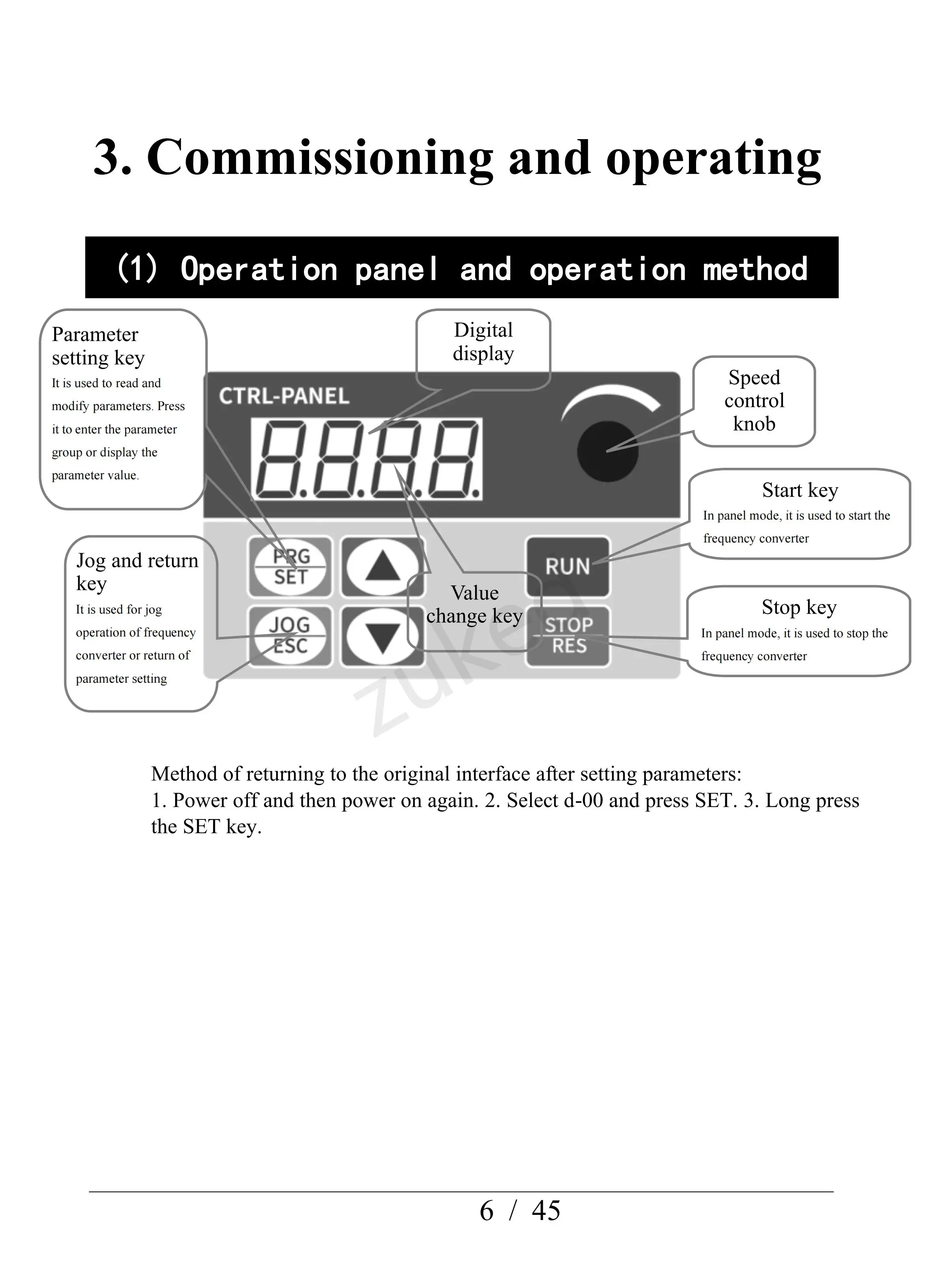

Humanized keyboard design, easy to operate.

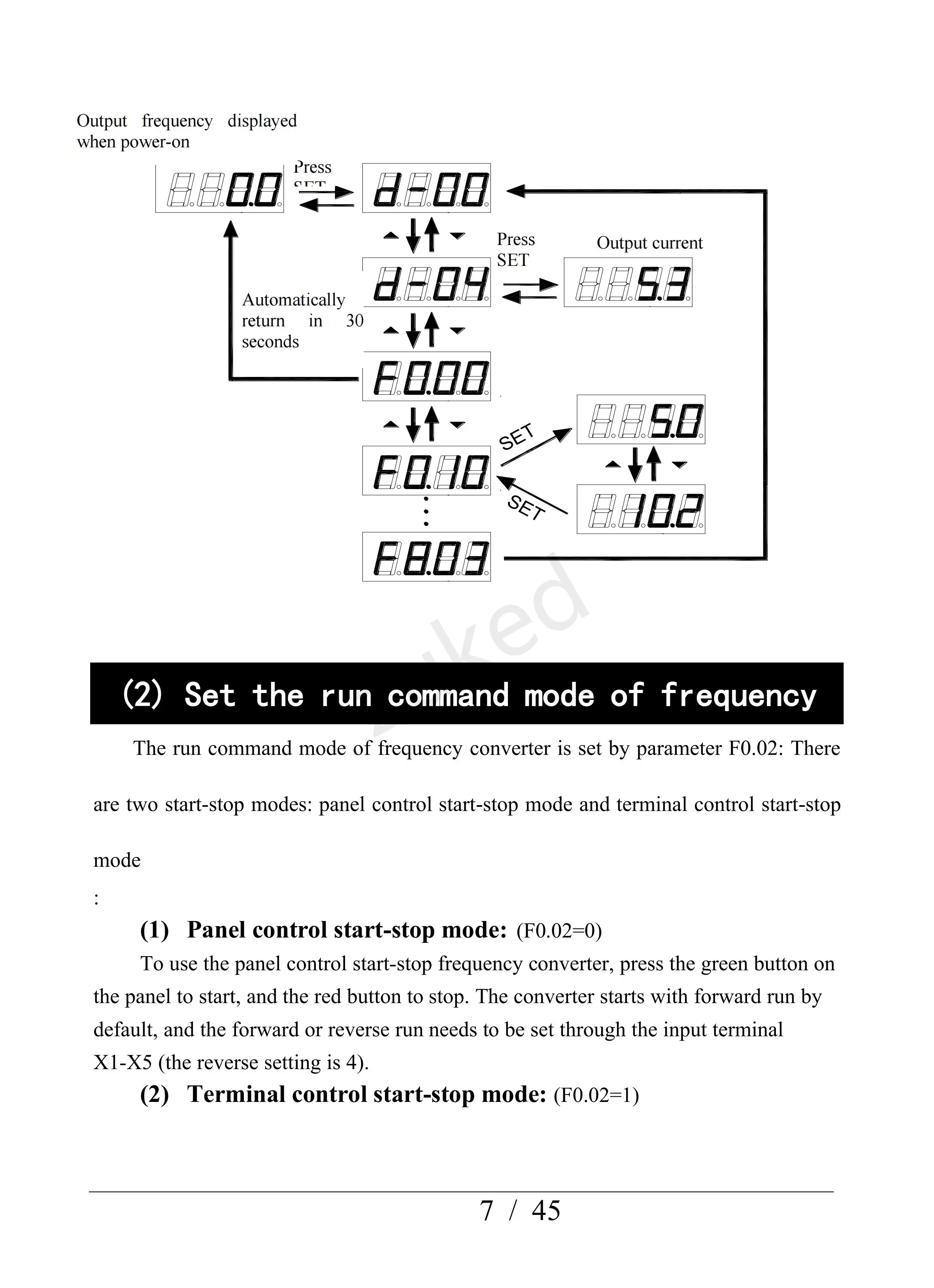

Digital display screen makes it convenient to read clearly.





Features:

1,This VFD uses unique control method to realize high torque, high precision and wide speed regulating range driving, with high performance.

2,It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.

3,By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference.

4,Over current, over voltage, over heat, overload, under voltage, intelligent power module protection.

5,Simple to operate and wire.

6, Fast start and stop response, large torque at low speed.





Specification:

Application range: Universal

Power supply phase: Single phase or three phase(option）

Rated current: 2.1A-24A(option）

Rated voltage: AC220V or AC380V(option）

Suitable motor power: 0.75KW-11KW(option)

Suitable motor type: for 3-phase Motor

Filter: No

DC power supply: Current type

Control method: V/F open loop

Output voltage adjustable method: PWM control

Quantity: 1pc



Package List:

1 x Variable Frequency Drive

1 x 1 meter extension cord
